Blue board ULN2003 stepper motor driver board + 5V stepper motor

• Descripción del producto
• Reseñas de clientes

Atributo	Valor del atributo
Warranty	Other
Place Of Origin	Guangdong, China
Brand Name	lankamicro
Model Number	3011
Phase	other
Tipo	other
Sku	3011
Marca	lankamicro
Lead Free Status	Lead free / RoHS Compliant
Condition	Brand New With Original Manufacturer

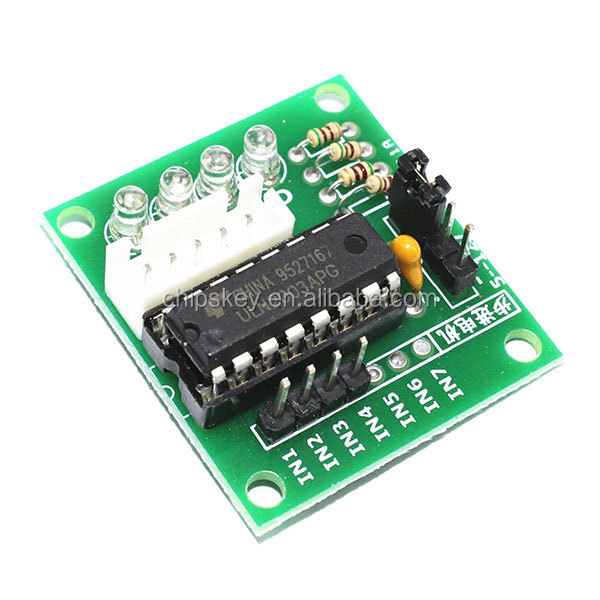

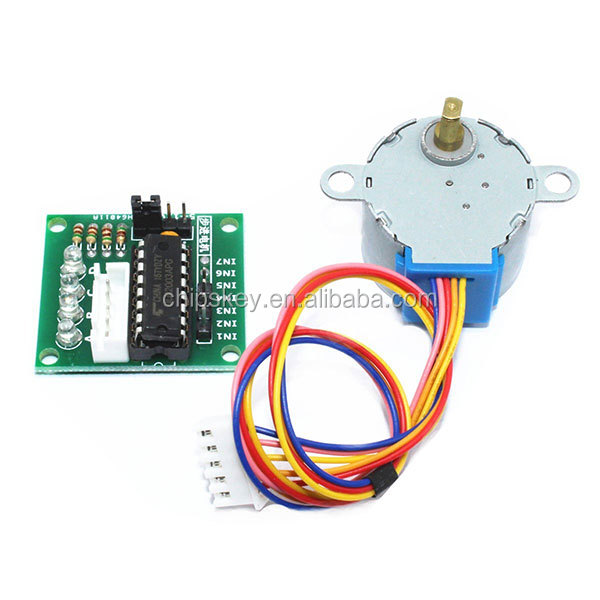

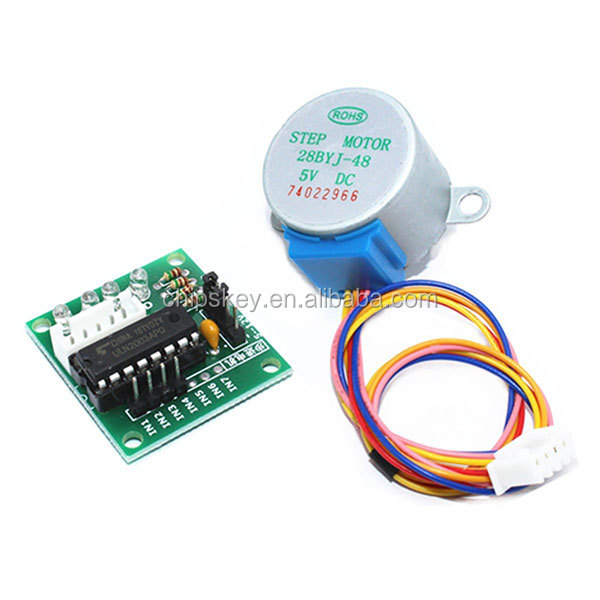

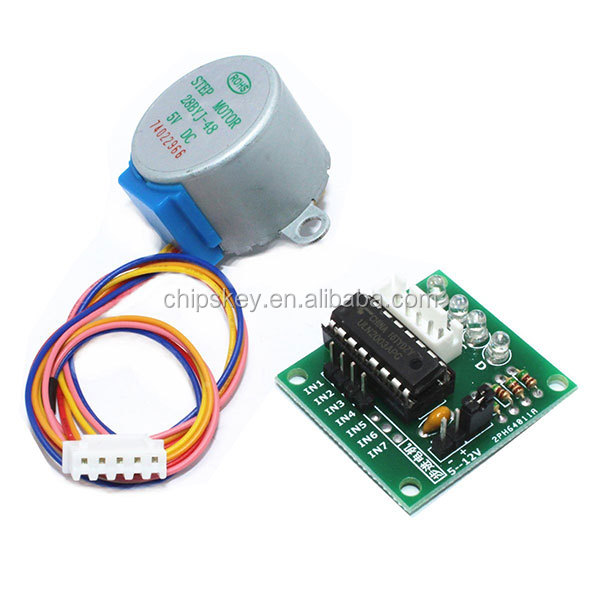

Blue board ULN2003 stepper motor driver board + 5V stepper motor
Features:
1. ULN2003 motor driver chip
2. Chip all the pins already leads for easy connection to use
3. 5V power supply
4. 4-way signal indicator
5. XH-5P socket, can be connected directly 28BYJ-48 Model stepper motor
6. PCB board size: 18 (mm) x26 (mm)

Reduction stepper motor
Diameter: 28mm
Voltage: 5V
Stepping angle: 5.625 x 1/64
Reduction ratio: 1/64
